Introduction
Steel tape armoured power cable are also know as STA armoured cable or armoured cable, Jenuincable supplies PVC armored cable as CU/PVC/STA/PVC 0/6/1KV and XLPE armored cable CU/XLPE/PVC 0.6/1KV following the standard of IEC60502, and AS/NZS5000.1
Single core armoured cable is mounted with aluminium wire according to BS 6346, BS5467 AND AS/NZS 5000.1. However, IEC standard requires galvanized steel tape cable armouring.
The steel tape armoured cable could be designed for some other performance as LSZH, flame retardant and fire resistance according to different usage. The steel tape armoured cable is widely buried underground and laid where it needs mechanical protection and withstand the tensile force.

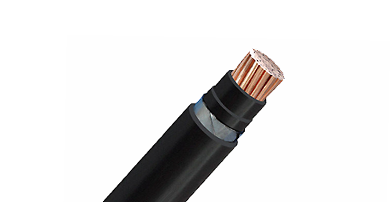

Description of Steel Tape Armoured PVC Insulated Power Cable Single Core
- Rated Temperature: 70oC
- Rated Voltage: 600/1000V
- Reference Standard: GB/T12706, IEC60502
- Model: VV22
- Shaped stranded copper conductors
- Flame retardant insulated with PVC compound
- PVC bedded
- Galvanized steel tape armored
- Flame retardant PVC sheathed overall
Application Of Steel Tape Armoured PVC Insulated Power Cable Single Core
• For underground installation in transport and power distribution
• Protection against mechanical aggressions and rodents
