Introduction
Multiple Core steel wire armoured power cable is also known as SWA armoured cable or armoured cable. Jenuincable supplies the armoured cables of XLPE insulated as CU/XLPE/SWA/PVC 0.6/1KV following with the standard of IEC60502, BS5467, BS 6724, BS 7846 and AS/NZS5000.1.
The steel wire armoured cable could be designed for other performance as LSZH, flame retardant and fire resistance according to customer requirements. These steel wire armoured cables are normally installed where it required to buried underground and where it requires mechanical protection and withstand tensile force.

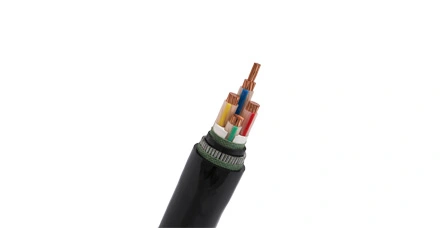

Description of Multiple Cores Steel Wire Armoured XLPE Insulated Power Cable
• Rated Temperature: 90oC
• Rated Voltage: 600/1000V
• Reference Standard: IEC60502, BS5467, BS6724, BS7846
• Shaped stranded copper conductors
• Insulated with cross-link polyethylene compound
• PVC bedded
• Galvanized steel wire armored
• Flame retardant PVC sheathed overall
Application Of Multiple Cores Steel Wire Armoured XLPE Insulated Power Cable
• For underground installation in transport and power distribution
• Protection against mechanical aggressions and rodents
