Introduction

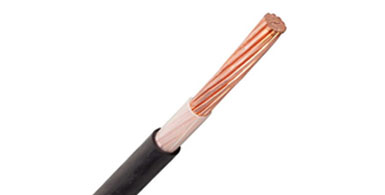

Single core XLPE insulated cable/wire features a plain annealed solid or strands circular copper conductor with XLPE insulation and PVC sheath. It is also referred to XLPE cable or CU/XLPE/PVC 0.6/1000V. The single-core insulated cables are available to make following the standard of AS 5000.1, IEC 60502, and BS7889.
Description Of Single Core Power Cable (XLPE Insulated)
- Rated Temperature: 90℃
- Rated Voltage: 600/1000V
- Reference Standard: IEC60502
- Conductor: Shaped and circular stranded copper conductors
- Insulated: Insulated with cross-link polyethylene compound
- PVC bedded
- Flame retardant PVC sheathed overall
Application Of Single Core Power Cable（XLPE Insulated）
• For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions
• For situation not suppose to bear the external mechanical force
