Introduction
Fire resistant power cable can maintain the integrity of the circuit and continue to work for a period of time when exposed to fire. The cables are also know as CU/MICA/PVC/PVC 0.6/1KV or CU/MICA/XLPE/PVC 0.6/1KV to basic standard IEC60502-1 or BS 7846.
Layers of the mica tape is key materil to obtain the function of fire resistance in the cable. We we twist two layers of mica tape with 80% overlap rate whcih acheives a good performance of fire resistant.

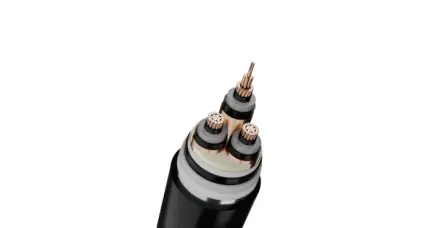

Description of Fire Resistant Power Cable (1-4cores)
• Rated Temperature: 90oC
• Rated Voltage: 600/1000V
• Reference Standard: IEC60502-1, BS6387, BS7846, IEC60331, IEC60332-1, IEC60332-3, IEC60754, IEC61034
• Model: FR/XLPE/LSZH
• Stranded copper conductors (FR10)
• Mica/Glass fire resistant tape
• Insulated with cross-link polyethylene compound
• LSZH bedded
• LSZH sheathed overall
Application Of Fire Resistant Power Cable (1-4cores)
For nuclear power plants, underground railways, tunnels, airports, docks, radio tower and other high fire resistant requirements situation.
