Introduction

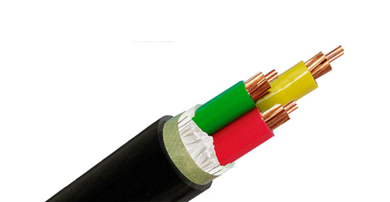

PVC insulated 3 core power cables are normally used in power transmission and distribution systems. The 3 core PVC flexible cables are referred to IEC60502 CU/PVC/PVC 0.6/1KV. The circular conductor is applied for the size below 16㎡ and the shaped conductor is applied for the size above and including 35㎡.
Description of 3 Cores Power Cable (PVC Insulated）
- Rated Temperature: 70℃
- Rated Voltage: 600/1000V
- Reference Standard: GB/T12706, IEC60502, BS6346
- Model: VV
- Shaped stranded copper conductors
- Flame retardant insulated with PVC compound
- PVC bedded
- Flame retardant PVC sheathed overall
Application of 3 Cores Power Cable (PVC Insulated)
• For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions.
• For situation not suppose to bear external mechanical force.
