Introduction

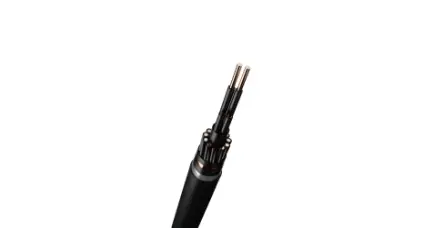

PVC insulated steel tape armoured control cable are widely laid up in indoor, cable trench, pipe, shaft and underground and can withstand certain tensile force and mechanical force. It is refered as steel tape armoured control cable with 450/750v or STA control cable.
Description of Steel Tap Armoured Control Cable
- Common Type: 2*0.75, 2*1, 2*6, 3*0.75, 3*6, 4*0.75, 4*4, 10*1.5, 10*2.5.
- Conductor: copper class 5
- Insulation: PVC
- Armoured: steel tape armored
- Max operating temperature of conductor:70℃
- Bending radius: ≥ Outer diameter of cable 12 times
- Rated voltage: 450/750V
- Cores No: from 2 cores to 61cores
- Standard: IEC Standard: IEC 60227, IEC60228
China national standard: GB9330
Application Of Steel Tap Armoured Control Cable
Widely in the application as power and connecting cables for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly and as in factory building with rated voltage up to and including 450/750V.
