Introduction

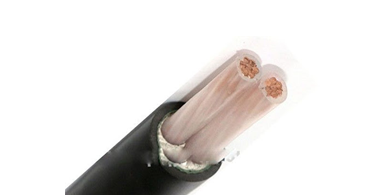

XLPE insulated 2 core power cables are normally used in power transmission and distribution systems. The 2 core XLPE cable is referred to as IEC60502 CU/XLPE/PVC 0.6/1KV. The circular conductor is applied for the size below 16mm² and the shaped conductor is applied for the size above and including 35mm².
Description Of 2 Cores Power Cable (XLPE Insulated)
- Rated Temperature: 90℃
- Rated Voltage: 600/1000V
- Reference Standard: IEC60502
- Conductor: Shaped and circular stranded copper conductors
- Insulated: Insulated with cross-link polyethylene compound
- PVC bedded
- Flame retardant PVC sheathed overall
Application Of 2 Cores Power Cable (XLPE Insulated)
- For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions
- For situation not suppose to bear the external mechanical force
