Introduction

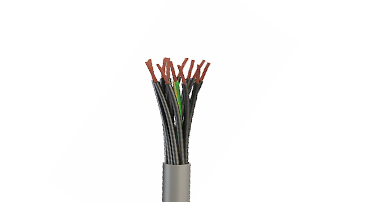

YY PVC insulated and sheathed control cable, known as YY cable or YY control cable, features flexible conductor and non-screen single core or multifull cores cables for power and signal transmission. YY flexible control cable is widely used in engineering, plant installations, vehicle manufacturing, bottling plants and many other fields. It is used indoors in dry and moist situations. Provided protected from sunlight or some other mechanical damage, YY control cable could be used outdoor.
YY flexible control cable is not suitable to fixed applications where required compliance with other equipment.
Description of YY PVC Insulated PVC Sheathed Control Cable
- Plain Annealed Flexible Copper Conductors / PVC / PVC 300/500V
- Rated voltage 300/500V
- Standard: BS50525-2-11
- Conductor: Stranded Copper class5
- Insulation: PVC
- Sheathing: PVC
- Temperature rating: from 0ºC to +70ºC
Application Of YY PVC Insulated PVC Sheathed Control Cable
YY cable is designed to be used in production lines, conveyors and for computer units for measuring, controlling or regulation in control equipment.
Because YY cable has good flexibility, it is widely used for linking fixed and mobile equipment.
The PVC Insulated and Sheathed Flexible Control Cable are known as YY CABLE which following the standard of BS50525-2-11.
YY can be useful in outdoor projects if it is equiped with some protected installation. However it is recommended to use for indoor projects in dry or moist conditions.
